The DR011 is the smart direct replacement choice for the BEI EX152 encoder commonly used on postal sorting equipment, baggage systems, and packaging/conveying equipment. This exact replacement has the added benefit of an attached cable, saving a technician time by not having to solder wires to a circuit board. Improved sealing means a longer life with increased protection.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A DR011

Type

 N/A Replacement Encoder

Input Voltage

 N/A 4.75 to 28 VDC max for temperatures up to 70 ºC

Input Current

 N/A 100 mA max with no output load

Input Ripple

 N/A 100 mV peak-to-peak at 0 to 100 kHz

Output Type

 N/A Push-Pull - 20 mA max per channel

Frequency Response

 N/A 100 kHz

Rise Time

 N/A <1 µs

Operating Temperature

 N/A 0 to 70 ºC

Storage Temperature

 N/A -25 to 85 ºC

Non-Condensing Relative Humidity

 N/A 95 %

Features

N/A

  • High precision 1.50" incremental encoder
  • Stainless steel 1/4" OD shaft
  • Quadrature A & B channels
  • 1000 CPR
  • Push-Pull output

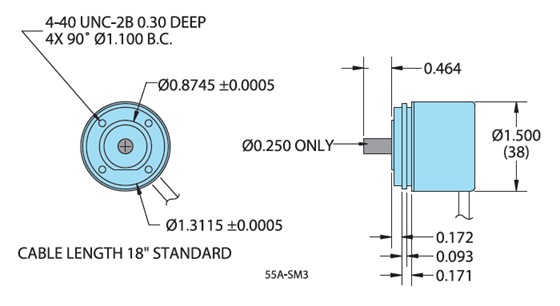

  • Servo mount encoder with 4-40 x 0.30" deep mounting holes on a 1.100" bolt circle
  • 18" cable with strain relief
  • IP50 sealing
  • Shaft speeds up to 7,500 RPM
