The Model A36HB absolute encoder offers a high performance solution for your absolute feedback needs. It provides maintenance-free feedback thanks to its innovative battery-free and gear-free multi-turn technology. This encoder is especially suited for applications where position information must be retained after loss of system power. Its rugged magnetic technology and high IP rating make the Model A36HB an excellent choice, even in tough industrial environments. Available with a 1/4" or 6 mm blind hollow bore and a wide selection of flexible mounting options, the Model A36HB is easily designed into a variety of applications.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A A36HB

Type

 N/A Encoder

Resolution (Single)

 N/A 01 to 16 bits

Resolution (Multi)

 N/A 01 to 43 bits

Maximum Shaft Speed

 N/A 12,000 rpm

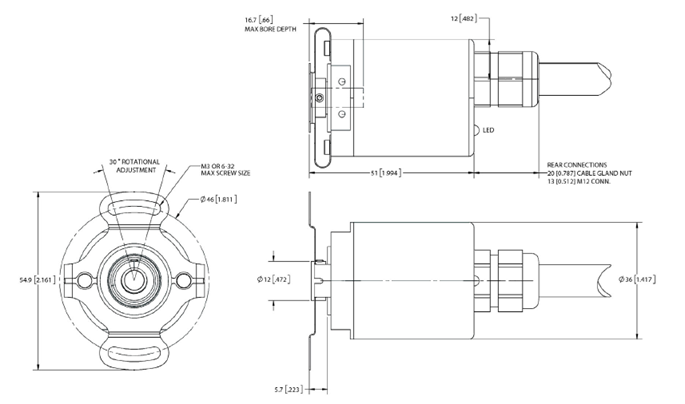

Bore Depth

 N/A 0.669 in17 mm

Housing

 N/A All Metal with Protective Finish

Non-Condensing Relative Humidity

 N/A 95 %

Common Applications

N/A Robotics, Telescopes, Antennas, Medical Scanners, Wind Turbines, Elevators, Lifts, Motors, Automatic Guided Vehicles, Heavy-Duty Vehicles, Cranes, Rotary and X/Y Positioning Tables

Features

N/A

  • Single Turn/Multi-Turn Absolute Encoder (16 Bit ST / 43 Bit MT)
  • SSI, CANopen®, SAE J1939, and IO-Link communication protocols
  • Maintenance-free and environmentally friendly all-magnetic design
  • Energy harvesting magnetic multi-turn technology
  • No gears or batteries
  • Standard Size 36 mm (1.42") blind hollow bore encoder
  • Flex mount eliminates couplings and is ideal for motors or shaft
  • Meets CE/EMC standards for immunity and emissions
