The Model A25SB absolute encoder offers a high performance solution for your absolute feedback needs. This encoder is especially suited for applications where position information must be retained after loss of system power. It provides maintenance-free feedback thanks to its innovative battery-free and gear-free multi-turn technology. This encoder is the perfect choice for harsh industrial applications thanks to its rugged magnetic technology, available IP67 rating, and proven double bearing design. Available with several shaft sizes and mounting styles, the Model A25SB is easily designed into OEM and aftermarket applications.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A A25SB

Type

 N/A Encoder

Resolution (Single)

 N/A 01 to 16 bits

Resolution (Multi)

 N/A 01 to 43 bits

Maximum Shaft Speed

 N/A 8,000 rpm

Shaft Material

 N/A 303 Stainless Steel

Housing

 N/A Black Non-Corrosive Finish

Non-Condensing Relative Humidity

 N/A 95 %

Common Applications

N/A Robotics, Telescopes, Antennas, Medical Scanners, Wind Turbines, Elevators, Lifts, Motors, Automatic Guided Vehicles, Heavy-Duty Vehicles, Cranes, Rotary and X/Y Positioning Tables

Features

N/A

  • Single Turn/Multi-Turn Absolute Encoder (16 Bit ST / 43 Bit MT)
  • SSI, CANopen®, SAE J1939, and IO-Link communication protocols
  • Maintenance-free and environmentally friendly magnetic design
  • Energy harvesting magnetic multi-turn technology
  • No gears or batteries
  • IP67 sealing available
  • Servo and flange mounting

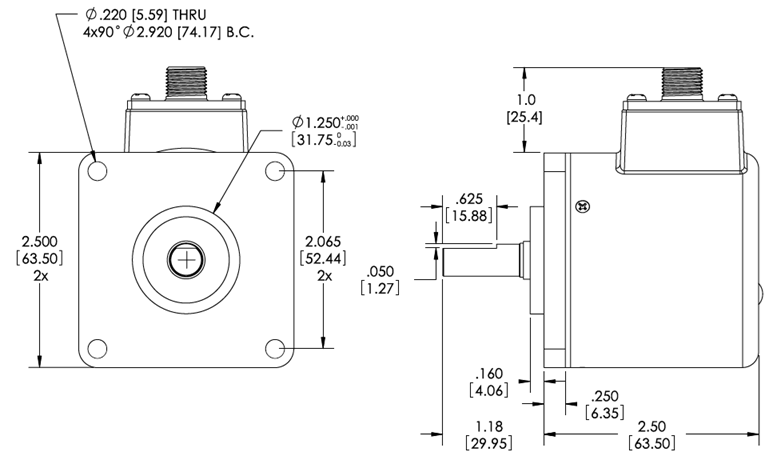

  • Standard Size 25 package (2.5" x 2.5")
  • Meets CE/EMC standards for immunity and emissions
