The Model 925 Single Turn Absolute Encoder is ideal for a wide variety of industrial applications that require an encoder with the capability of absolute positioning output. Its fully digital output and innovative use of Opto-ASIC technology make the Model 925 an excellent choice for all applications, especially ones with a high presence of noise. Available with either round servo or square flange mounting, and a variety of connector and cabling options, the Model 925 is easily designed into a variety of application requirements. The Model 925, with its wide selection of shaft sizes supported by industrial grade, heavy-duty bearings, and optional IP67 seal, is ideal for rough environments.
Unit of Measure

Technical Specs

Brands

 N/A
Encoder Products Company

Model

 N/A 925

Type

 N/A Encoder

Maximum Direct Current (DC) Input Voltage

 N/A 4.75 to 26 V

Regulation

 N/A 100 mV peak-to-peak, max ripple at 0 to 10 kHz

Input Current

 N/A 100 mA max with no external load

Output Format

 N/A Absolute - Parallel Outputs

Output Type

 N/A Open Collector -20 mA max per channel
Push-Pull - 20 mA max per channel

Code

 N/A Excess Gray Code Gray Code Natural Binary Code

Rise Time

 N/A <1 µs

Resolution

 N/A Up to 12 bits

Common Applications

N/A Machine Tools, Robotics, Telescopes, Antennas, Rotary & X-Y Positioning Tables, Medical Scanners

Features

N/A

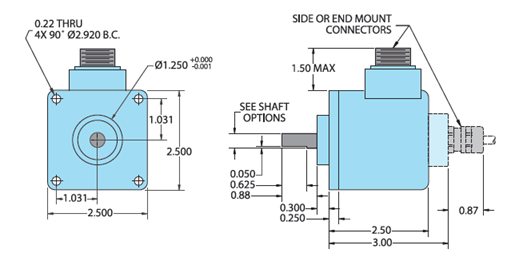

  • Standard Size 25 Package (2.5")
  • Resolutions up to 12-Bit (4096 Counts)
  • Incorporates Opto-ASIC Technology
  • Industrial Grade, Heavy-Duty Housing
  • Optional IP67 Seal
