Economical, electronic, single setpoint reset timer with 8 time ranges and 8 operating modes

The SX210 timer is a microprocessor based digital timer housed in a standard DIN style case (68mm square cutout). The small case and front bezel require minimal panel space yet provide large, easy to use programming keys and a .3 inch high LED display.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A SX210

Type

 N/A Timer

Operating Voltage/Frequency

 N/A A6 - 120 VAC, 50/60 Hz
B6 - 240 VAC, 50/60 Hz

Reset Time

 N/A 15 ms

Transient Protection

 N/A Immune to 2500 volts peak transients up to 50 microseconds in duration

Setting Accuracy

 N/A ±0.05% of setting or 50 ms, whichever is larger

Repeat Accuracy

 N/A ±0.001% of setting or 35 ms, whichever is larger

Output Rating

 N/A Relay: 5 amp (resistive), 10 to 264 VAC Current capacity derates from 7 amps at 250C to 5 amps at 500C with all output contacts used

Operating Temperature

 N/A 32 to 122 ºF0 to 50 ºC

Static Discharge

 N/A Unit function is unaffected by a constant 3600 volt peak, 60 Hz discharge applied to the grounded front plate at a relative humidity of less than 25%

Vibration

 N/A Unit function is unaffected by 2.5G sinusoidal vibration magnitude in both directions of the perpendicular mounting axes imposed from 10 to 100 Hz

Maximum Power On Response

 N/A 200 ms

Certification

 N/A

Features

N/A

  • Eight programmable time ranges and eight output operating modes
  • Operating modes and all other setup functions programmed with miniature rocker switches located on the back of the housing
  • Non-volatile RAM memory retains setpoint, actual time values, and program parameters (10 year expected life of data in memory)
  • NEMA 4 Hosedown Test rated
  • Special surface just below the display on which the function can be marked with pen or pencil
  • SET and ENT keys provide access to setpoint and front panel programmed functions
  • Programming changes entered via increment and decrement keys
  • Keypad "lock" function allows setpoint to be viewed, but does not allow unauthorized changes
  • Four 0.3 inch red LED displays for easy readability
  • Flashing LED (right side of display) indicates unit is in timing cycle and LED (left side of display) lights when programmed contacts are energized

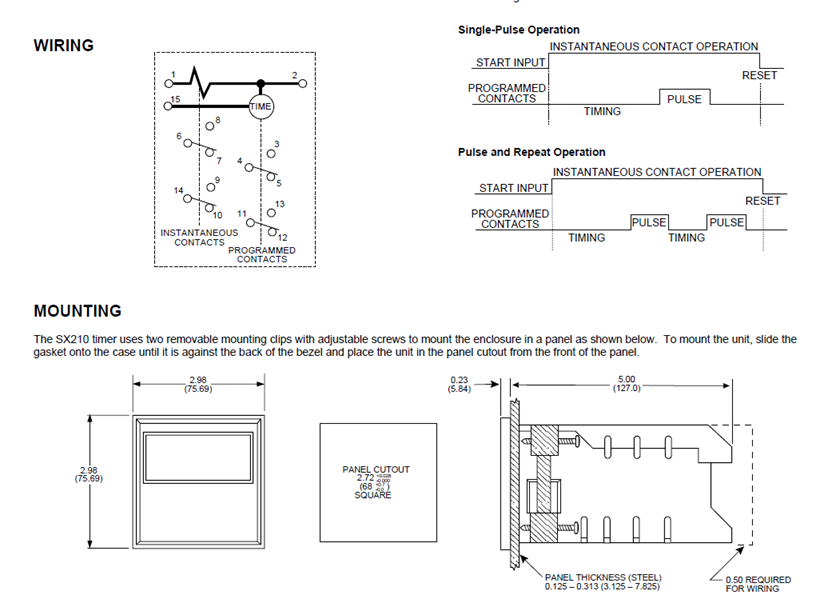

  • Two removable terminal blocks with screw gate style wire clamps permit prewiring of panel without the timer in place and eliminate rewiring if unit needs to be removed or replaced
  • Two DPDT relay outputs with five amp contact ratings - one is a set of instantaneous contacts that energize when timing cycle starts and remain energized until timer is reset, and the other is a set of programmable contacts that can be programmed to turn on and off in several operating modes
