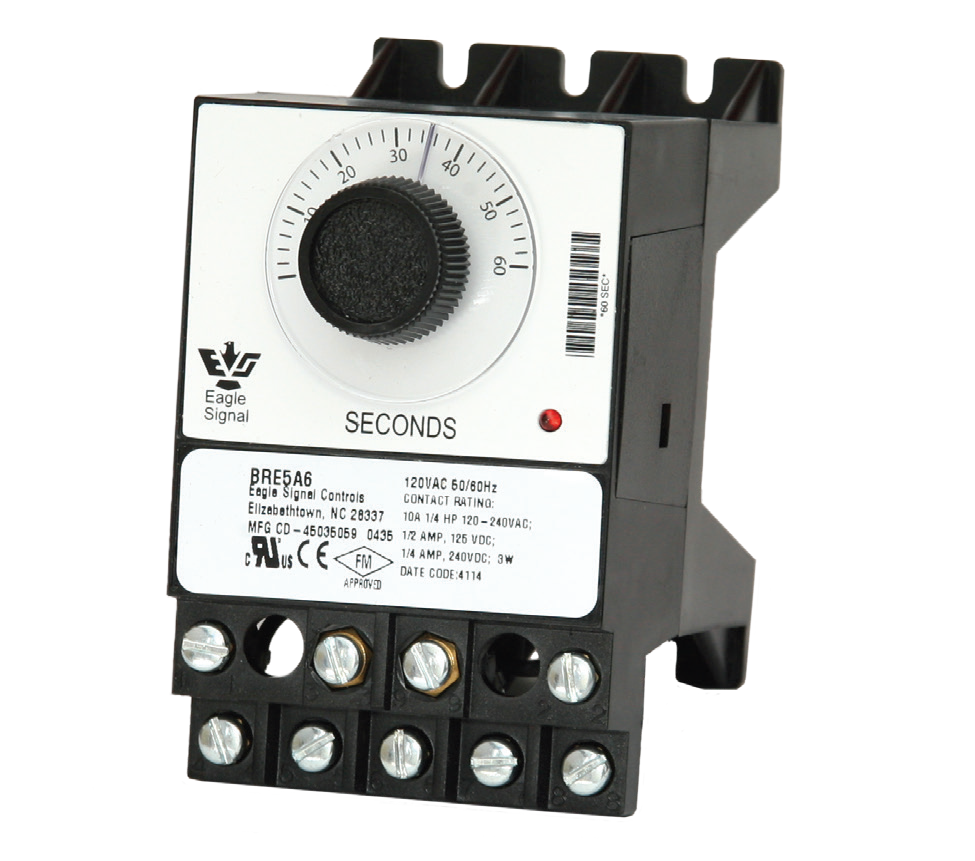

The BRE Series enclosed construction with front facing dial and knob. The BRE Series timer has a heavy-duty terminal block, with 9 screw terminals that will readily accept 16 gauge wire commonly used in industrial circuit wiring.

The case of the BRE Series timer is injection molded Lexan®. This material is recognized by Underwriters Laboratories for use as the sole support of current carrying components. Lexan is self-extinguishing, has a high impact strength, and high dimensional stability.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A BRE

Type

 N/A Timer

Voltage

 N/A 120 V240 V

Voltage Tolerance

 N/A +10 %-15 %

Frequency

 N/A 50 Hz60 Hz

Activation Time

 N/A 150 ms

Reset Time

 N/A 1 ms

Dial Setting Accuracy Full Scale

 N/A 3 %

Minimum Setting Full Scale

 N/A 2 %

Power Consumption

 N/A 1.5 W

Output Rating

 N/A 1/2 Ampere, 125 VDC 1/4 Ampere, 240 VDC 10 Ampere, 1/4 HP, 120/240 VAC

Operating Temperature

 N/A -10 to 140 ºF-23 to 60 ºC

Features

N/A

  • Surface mounted
  • Many time ranges available
  • On-delay and off-delay models
  • Easy install and set-up

Additional Information

N/A The NEW BRE series reset timers are micro processor driven. They provide an accurate adjustable time delay between the actuation of the control circuit and the operation of the load switches. New standard pilot light is on during timing period.
