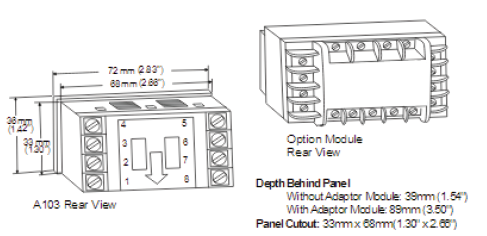

The A103 Series Elapsed Time Indicators provide a range of capabilities unequaled in products of similar size and cost. A single model can be programmed to display in seconds, minutes, hours, or hours: minutes: seconds. The A103 series also includes matching indicators for count totalization and rate metering, as well as models with a preset output for control by count or time. All are in a uniform 36 x 72 millimeters bezel size package, enhancing your control panel with a family of devices that look and program alike.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A A103

Type

 N/A Timer

Start/Stop Input

 N/A Negative-Positive-Negative (NPN), Contact Closure; Accumulates time when connected to common; Low State: < 1.0 VDC, High State: > 2.0 VDC (28VDC max)

Security Input

 N/A Allows access to panel reset and programming features

Remote Reset Input

 N/A NPN or Contact Closure to Common; Level Sensitive

Power Source

 N/A Single or dual 3V Lithium battery; typical 5 years life with single battery, 10 years with dual batteries

Ranges and Resolution

 N/A Seconds, minutes to 1/10, hours to 1/10, hours: minutes: seconds

Display

 N/A 12 mm high, Supertwist LCD; 8 digits; "Low Bat" indicator

Display Backlighting

 N/A Green Illumination over whole viewable area.
Requires 10 to 28 VDC power source

Mounting

 N/A Panel Mount with supplied mounting bracket and gasket

Connection

 N/A Screw Terminals

Operating Temperature

 N/A 32 to 131 ºF0 to 55 ºC

Weight

 N/A 64 g2.25 oz

Features

N/A

  • Matching totalizing and preset counters, preset timers, tachometer/rate indicators are available - look great together on a panel
  • High visibility 7-digit LCD display with backlighting capability standard
  • Long life 3 Volt lithium battery eliminates the need for external power
  • Accepts input signals from a variety of sources: Dry Contact, PNP or NPN Sensors
  • Single multirange model covers popular time resolutions
  • Resettable remotely or from the front panel
  • Programmable security of front panel reset button
  • Option modules provide additional functionality and added convenience - fast, easy installation
  • NEMA 4X/IP65 rated front panel for use in washdown environments

Additional Information

N/A A supertwist LCD display with thick 12mm (0.47") high digits allows for easy viewing at a glance and feature display-backlight capability by simply connecting an external 12VDC supply.

Powered by an internal 3 volt battery, the A103's unique design has two battery slots; this allows battery changeover without loss of memory.

Timing start/stop can be initiated by solid-state signals or mechanical switches.

The A103 Series timers are further enhanced by a series of quick-attach option modules. These can provide a power supply for sensors and display backlighting, and accept high or low voltage AC or DC input signals.
