The HQ4 Series 48 Percentage Timer is an accurate, economical, enclosed percentage timer designed for use in applications where a repetitive “ON” time of a fixed cycle needs to be variable.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A HQ4

Type

 N/A Percentage Timer

Voltage/Frequency

 N/A 120 VAC (+10, -15%), 50/60 Hz
240 VAC (+10, -15%), 50/60 Hz

Contact Rating

 N/A 1/2 Amp at 125 VDC 1/3 HP at 125 to 250 VAC 1/4 Amp at 250 VDC 10 Amps at 240 VAC

Setability

 N/A ± 1 % of Total Time Cycle

Operating Temperature

 N/A -10 to 140 ºF-23 to 60 ºC

Maximum Power Consumption (Burden)

 N/A 4 V·A

Certification

 N/A

Features

N/A The HQ4 Series 48 Percentage Timer is ideally suited for

  • Irrigation Controls
  • Chemical Feeding
  • Program Temperature Controls
  • Electric Heaters, Ovens
  • Motor Control
  • Lubrication System

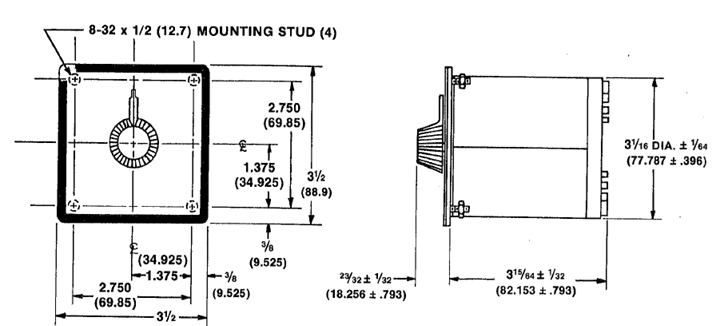

The HQ4 series 48 percentage timer is a panel mounted unit with exposed dial. The heavy-duty front dial plate has 4 mounting studs for simple and secure mounting to panels up to 1/4 inch thick. The load relays are enclosed for environmental protection. Electrical connections are made to captive screw terminals on the rear of the unit.
