The Model 191 is a push-button start, motor driven timer with cycle progress pointer, double make-double break snap action switch and is used to energize a load for a preset time period. The push-button is located in the center of the time set pointer knob on the panel mounted dial. When depressed momentarily, a mechanical latch and switch is engaged, starting the motor and timing period. After completion of timing, switch 3 and 4 open, 1 and 2 close, motor stops, and timer resets to setpoint. Timer is now ready for another timing operation.
Unit of Measure

Technical Specs

Brands

 N/A
Eagle Signal

Model

 N/A 191

Type

 N/A Reset Timer

Voltage/Frequency

 N/A 120 V (+10, -15%), 50/60 Hz
240V (+10, -15%), 50/60 Hz

Burden

 N/A 120 VAC/3 watts
240VAC/3 watts

Contact Rating (Resistive)

 N/A 10A 120/240V

Repeat Accuracy of Full Scale

 N/A 1.5 %

Setting Accuracy of Full Scale

 N/A 1.5 %

Termination

 N/A Motor - Loose Leads, 20 Ga., 6 in. long stripped 5/8 in.
Switch - 0.188 x 0.250 x 0.020 Quick Connect Tabs

Certification

 N/A

Additional Information

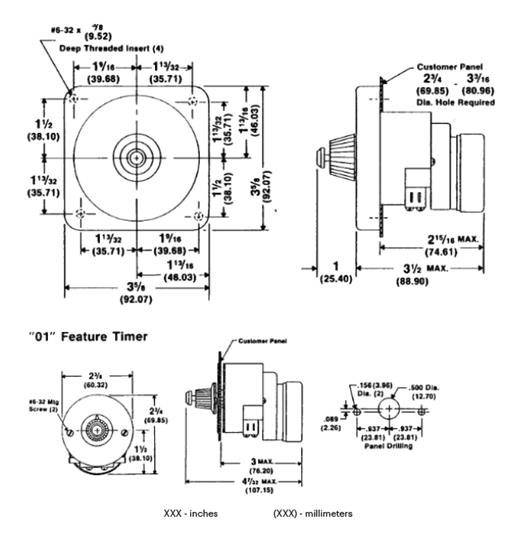

N/A The standard timer has cycle progress and a 3 5/8 inch square bezel with window. The “01” feature does not include cycle progress indicator or bezel and window assembly.

  • Just set the dial and push the button to initiate an accurate time delay or interval cycle
  • Provides an accurate, adjustable time delay or timed interval for control of a load circuit
