Model

 N/A SS2

Type

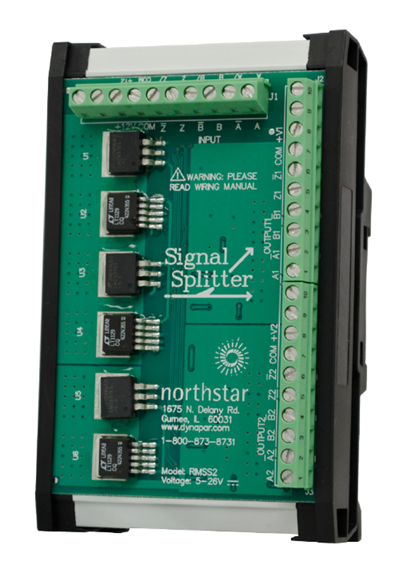

 N/A RIM Signal Splitter

Input Signal

 N/A 2 or 3 channel quadrature signal, square wave, open collector, differential, or single ended line driver

Direct Current (DC) Input Signal Voltage

 N/A 4 to 26 V

Minimum Input Signal Current

 N/A 2.2 mA

Typical Input Signal Current

 N/A 3.5 mA

Input Impedance

 N/A Optically isolated, 1 kOhm at 4V, 6.8 kOhms at 24V typical. Current limited.

Frequency Range

 N/A 0 to 120 kHz

Output Signal

 N/A Two independent, isolated line driver output sets (A/A, B/B)

Key Features

N/A

  • Eliminates the Expense and Maintenance of Two Separate Encoders
  • Optically Isolated Outputs can be Sent to a Motor Drive and a Display at the Same Time
  • Compatible with Virtually Every Incremental Digital Encoder
  • Combats Long Distance and Electrical Interference Problems
