Technical Specs
Brands |
N/A
 Dynapar™ |

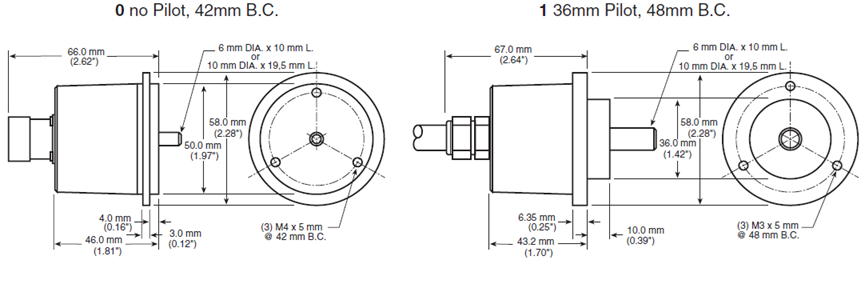

Model |

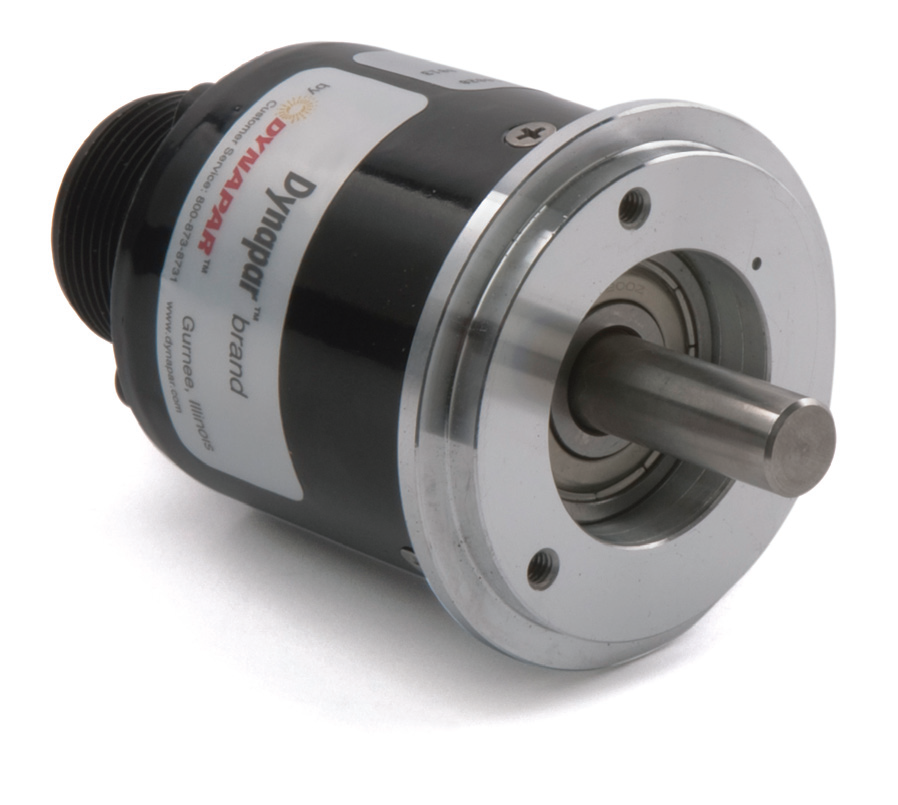

N/A H58 |
Type |
N/A Shafted Incremental Encoder |
Code |
N/A Incremental Optical |
Resolution |
N/A 1 to 2,540 pulses/rev |
Format |
N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs |
Phase Sense |
N/A A leads B for CCW shaft rotation as viewed from the shaft end of the encoder |
Quadrature Phasing |
N/A 90º ±22.5º Electrical |
Symmetry |
N/A 180º ±18º Electrical |
Index |
N/A 180º ±18º Electrical (Gated with B Low) |
Waveforms |
N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf |
Certification |
N/A
 |
