Technical Specs

Brands

 N/A
Dynapar™

Model

 N/A H56

Type

 N/A Heavy-Duty Incremental Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 1 to 5,000 pulses/rev

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CW shaft rotation as viewed from the C-face of the encoder

Quadrature Phasing

 N/A 90º ±22.5º Electrical

Symmetry

 N/A 180º ±25º Electrical

Index

 N/A 180º ±25º Electrical (Gated with B Low)

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Encoder-Within-Encoder Design with Phased Array Sensor for Reliable Signal Output
  • Large Outer Bearings Isolate Shaft Loads

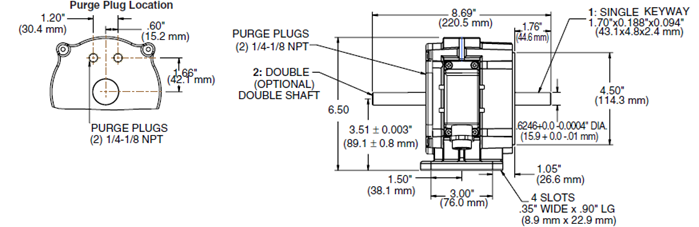

  • Foot Mount or 56 C-Face Mount Easily Replaces BC42 and 46 Tachs
  • Rugged Enclosure Rating: IP66
