Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

Model

 N/A 6200

Type

 N/A Incremental Encoder

Code

 N/A Incremental Magnetic

Resolution

 N/A 60 to 4,096 pulses/rev

Phasing Sense

 N/A A leads B for Counter-Clockwise rotation (CCW) viewing the 4.5" C-face end of the Encoder

Quadrature Phasing

 N/A 90º ±45º

Symmetry

 N/A 50% ±15%

Number of Output Modules

 N/A Dual Single

Certification

 N/A

Key Features

N/A

  • Stainless Steel and Ductile Cast iron Construction for a Rugged Heavy-Duty Encoder
  • New Sensor Technology provides Extra Wide Gap for even Higher Reliability
  • Extra Heavy-Duty Bearings for Long Life
  • Redesigned Circuitry for On-Board Diagnostics with LED and Alarm Output

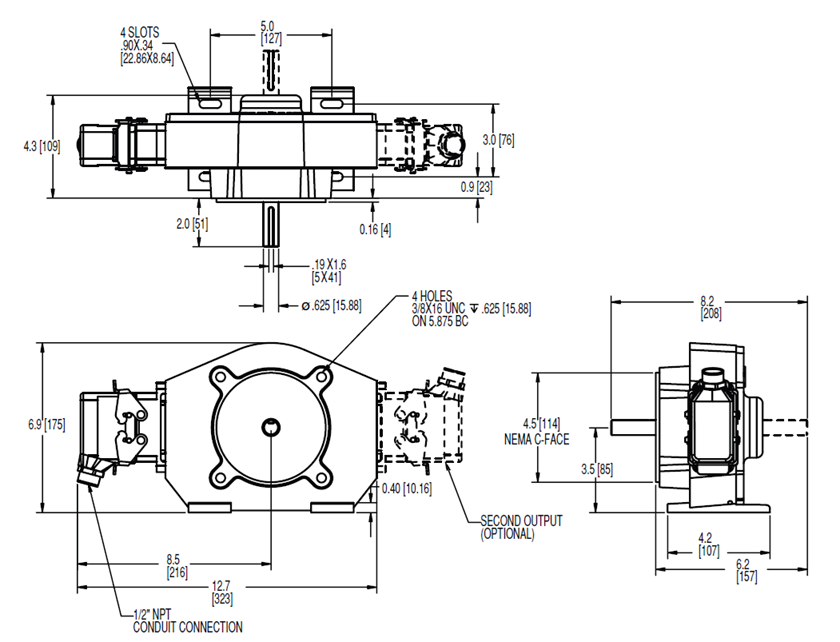

  • Foot-Mount or 56-C Face Mount Ideal for "Flower Pot" or Belt Drive Applications
