Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

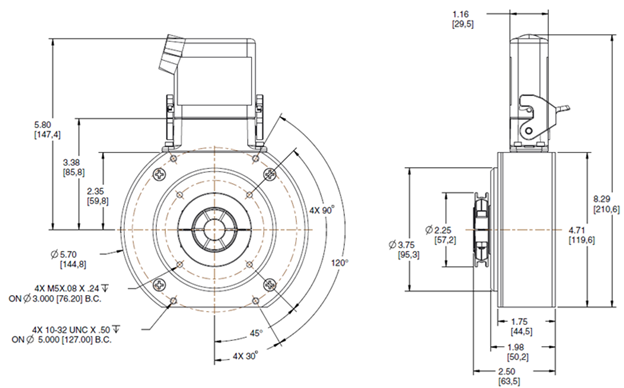

Model

 N/A HT55

Type

 N/A Hollow Shaft Encoder

Code

 N/A Incremental Magnetic

Resolution

 N/A 256 to 4,096 pulses/rev

Phase Sense

 N/A A leads B for CW shaft rotation viewing the shaft clamp end of the encoder

Quadrature Phasing

 N/A 90º ±45º

Symmetry

 N/A 180º ±54º

Index

 N/A Less than A/B pulse width

Number of Output Modules

 N/A Dual Single

Certification

 N/A

Key Features

N/A

  • Redesigned Circuitry for On-Board Diagnostics with LED
  • Hollow shaft Design with Heavy-Duty Bearings Ideal for TEFC AC Motor Mounting
  • Expanded Resolution up to 4096 PPR
  • Accommodates Shaft Sizes from 1/2" to 2-7/8"
  • Stainless Steel and Anodized Aluminum Construction
  • Single or Dual Isolated Outputs Available with Field-Serviceable Connector
