Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

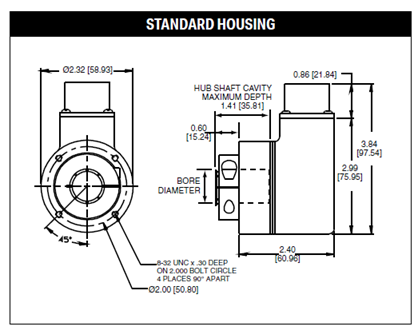

Model

 N/A ISD25

Type

 N/A Hazardous Duty Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 1 to 9,000 pulses/rev

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CCW shaft rotation viewing the shaft clamp end of the encoder

Quadrature Phasing

 N/A 90º ±30º Electrical

Symmetry

 N/A 180º ±25º Electrical

Index

 N/A 180º default gated to B low

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Class I, Division 1 and Zone 0 Certified
  • ATEX, UL and IECEx Certified for Hazardous Duty Applications
  • Unbreakable Code Disc up to 9,000 PPR
  • IP67 Sealing
  • Anodized Aluminum, Stainless Steel, or Nickel Plated Housing
