Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

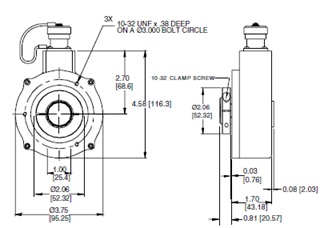

Model

 N/A HSD37-HDOE

Type

 N/A Harsh Duty Optical Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 1 to 20,000 pulses/rev

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CW shaft rotation viewing the shaft clamp end of the encoder

Quadrature Phasing

 N/A 90º ±30º Electrical

Symmetry

 N/A 180º ±25º Electrical

Index

 N/A 180º default gated to B low

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

  • Unique Sealing Design Offers Improved Ingress Protection
  • Anodized Aluminum, Stainless Steel or Nickel Plated Housing
  • Dual Isolated Outputs Available for Redundancy
  • Quadrature Resolution up to 20,000 PPR
  • Numerous Bore Size Options up to 1 inch
