Technical Specs

Brands

 N/A
Dynapar™

NorthStar™

Model

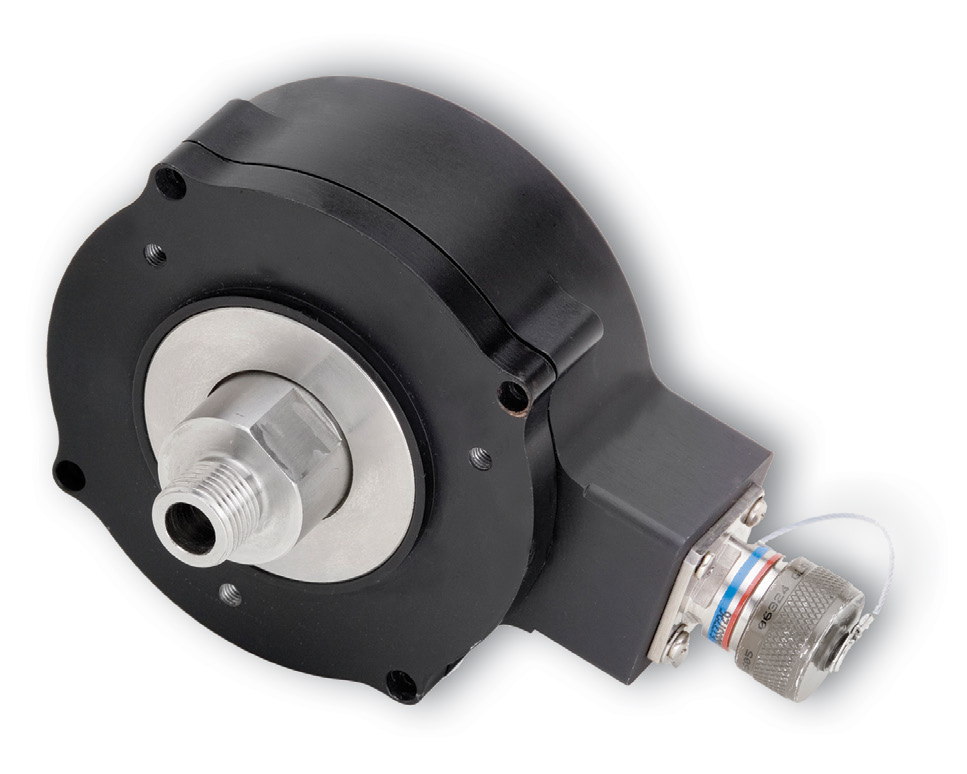

 N/A DWD38

Type

 N/A Incremental Encoder

Code

 N/A Incremental Optical

Resolution

 N/A 1 to 20,000 pulses/rev

Format

 N/A Two channel quadrature (AB) with optional Index (Z) and complementary outputs

Phase Sense

 N/A A leads B for CCW shaft rotation viewing the shaft end of the encoder

Quadrature Phasing

 N/A 90º ±30º Electrical

Symmetry

 N/A 180º ±25º Electrical

Index

 N/A 180º default gated to B low

Waveforms

 N/A Square wave with rise and fall times less than 1 microsecond into a load capacitance of 1000 pf

Certification

 N/A

Key Features

N/A

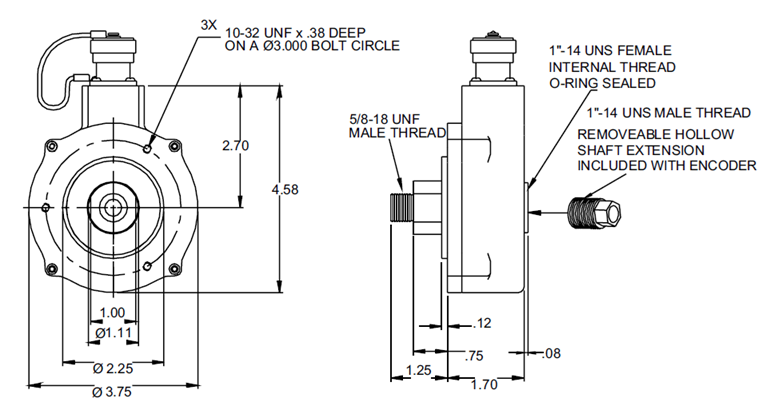

  • Draw Works Threaded Shaft with Field Replaceable Adapters for Reduced Downtime
  • Dual Isolated Outputs Available for Redundancy
  • Anodized Aluminum or Stainless Steel Housing
  • NAMUR Sensor Output Available
  • 400G Shock and 20G Vibration Independently Validated
