Technical Specs

Brands

 N/A
Dynapar™

Model

 N/A AI25 CANLayer 2

Type

 N/A Absolute Encoder

Code

 N/A Absolute Optical

Resolution (Single-Turn)

 N/A 10 to 14 bits

Resolution (Multi-Turn)

 N/A 12 bits

Linearity

 N/A ± 1/2 LSB

Absolute Accuracy (±)

 N/A 0.01º mechanical (36 arc-sec.)

Repeatability (±)

 N/A 0.002º mechanical (7.2 arc-sec.)

Certification

 N/A

Key Features

N/A

  • Up to 14 Bit of Single-turn and 12 Bits of True Multi-turn Absolute Positioning
  • Onboard Diagnostics
  • CANbus CAN Layer 2 Interface

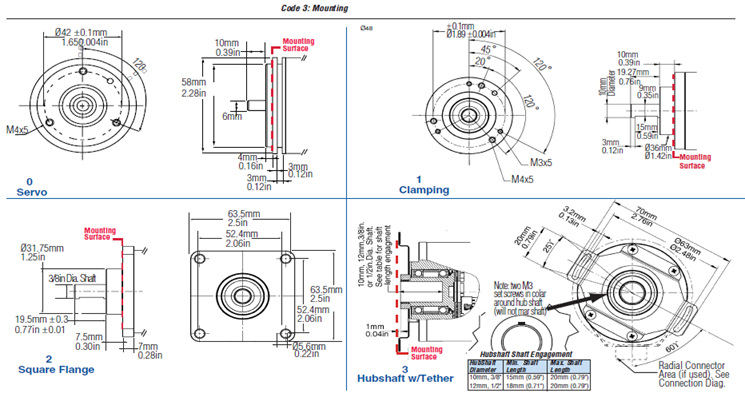

  • Available with multiple shaft configurations
  • Enclosure ratings of IP64 or IP67
