Technical Specs

Brands

 N/A
Autonics

Model

 N/A TX

Type

 N/A Temperature Controller

Permissible Voltage Range

 N/A 90 to 110% of rated voltage

Display Type

 N/A 11 Segment (White, Green, Yellow), LCD type

Dielectric Strength

 N/A Between the charging part and the case 3,000 VAC~50/60 Hz for 1 minute

Vibration

 N/A 0.75 mm amplitude at frequency of 5 to 55Hz in each X, Y, Z direction for 2 hours

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85% RH, Storage: 35 to 85% RH (No freezing or Condensation)

Power Consumption

 N/A ≤ 8 V·A

Insulation Resistance

 N/A ≥ 100 MΩ (500 VDC, Megger)

Certification

 N/A

Features

N/A

  • 50 ms high-speed sampling rate and ±0.3% display accuracy
  • Large LCD display with easy-to-read white PV characters
  • Switch between current output and SSR drive output
  • SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
  • Communication output model available : RS485 (Modbus RTU)
  • Parameter configuration via PC (RS485 communication) : DAQMaster software included (comprehensive device management software)

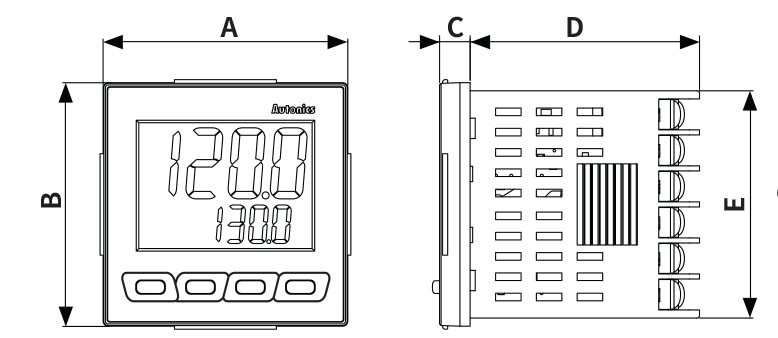

  • Compact, space-saving design with 45 mm depth : 30% rear-length size reduction compared to similar-sized (48x48 mm) models from Autonics
    Terminal protection cover sold separately : RSA-COVER
