Technical Specs

Brands

 N/A
Autonics

Model

 N/A TK

Type

 N/A Temperature Controller

Permissible Voltage Range

 N/A 90 to 110 % of rated voltage

Display Type

 N/A 7 Segment (red, green, yellow), Light Emitting Diode (LED) Type

Dielectric Strength

 N/A Dependent on the power supply

Vibration

 N/A 0.75 mm amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for 2 hours

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85%RH, storage: 35 to 85%RH (No Freezing or Condensation)

Sampling Period

 N/A 50 ms

Input Specification

 N/A Refer to 'Input Type and Using Range'.

Integral Time (I)

 N/A 0 to 9,999 sec

Certification

 N/A

Features

N/A

  • 50ms high-speed sampling rate and ±0.3% display accuracy
  • Simultaneous heating and cooling control function (patent)
  • Switch between current output and SSR drive output
  • SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
  • Communication output models available : RS485 (Modbus RTU)
  • Parameter configuration via PC (RS485 communication)
    • DAQMaster software included (comprehensive device management software)
    • Communication converter sold separately : SCM-US (USB to serial converter), SCM-38I (RS-232C to RS485 converter), SCM-US48I (USB to RS485 converter)
  • User-friendly parameter features
  • Heater disconnect alarm function (CT input)
    • Current transformer (CT) sold separately : CSTC-E80LN, CSTC-E200LN, CSTS-E80PP
  • SV preset function (up to 4 set values) using digital input terminals

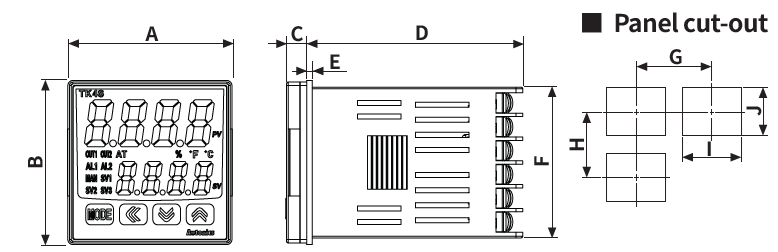

  • Available in various DIN sizes : (48 x 24, 48 x 48, 72 x 72, 96 x 48, 48 x 96, 96 x 96 mm)
    • Korea Patent Registration 10-1002582, U.S.A. Patent Registration 8645000, Japan Patent Registration 3184816, China Patent Registration ZL200980111733.X, Vietnam Patent Registration 1-0012131, India Patent Registration 291573, Indonesia Patent Registration IDP0032166
