Technical Specs

Brands

 N/A
Autonics

Model

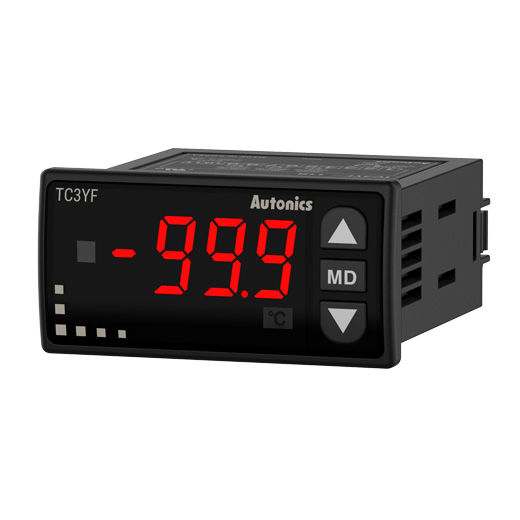

 N/A TC3YF

Type

 N/A Temperature Controller

Permissible Voltage Range

 N/A 90 to 110% of rated voltage

Display Type

 N/A 7 Segment (red), Light Emitting Diode (LED) Type

Dielectric Strength

 N/A Between the charging part and the case: 2,000 VAC 60 Hz for 1 minute

Vibration

 N/A 0.75 mm amplitude at frequency of 10 to 55Hz in each X, Y, Z direction for 2 hours

Ambient Temperature

 N/A -10 to 50 ºC, Storage: -20 to 60 ºC (No Freezing or Condensation)

Ambient Humidity

 N/A 35 to 85%RH, storage: 35 to 85%RH (No Freezing or Condensation)

Sampling Period

 N/A 500 ms

Input Specification

 N/A Refer to 'Input Type and Using Range'.

Control Type

 N/A ON/OFF Control

Hysteresis

 N/A 0.5 to 5.0 ºC2 to 50 ºF

Certification

 N/A

Features

N/A

  • ON/OFF control
  • Standard input type : thermistor (NTC)
    • RTD(Pt100Ω) input models available upon request.
  • Temperature range
    • Thermistor (NTC) : -40.0 to 99.9 ºC (-40 to 212 ºF)
    • RTD (Pt100 Ω) : -99.9 to 99.9 ºC (-148 to 212 ºF)
  • Various functions available for optimal cooling control
    • Auto/manual defrost selection, compressor start-up delay, restart delay, minimum ON time, end-defrost delay, evaporator fan operation delay
  • Input correction function
  • Operation cycle programming available to protect contents in case of error
