A new standard of performance and functionality in a compact preset counter. Four models offer single or dual preset count capability, or a single preset counter with a presettable batch counter.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A SQUIRE

Type

 N/A Predetermining Counter

Reset

 N/A Push-button (selectable enable), remote or automatic

Connections

 N/A Pluggable Screw Terminals

Operating Temperature

 N/A 32 to 112 ºF0 to 50 ºC

Presets

 N/A 6-Ddigits

Display

 N/A Transflective LCD, LED backlight; Counter: 6 digit, 7 mm;
Preset/Batch Count: 6 digit, 4 mm; 14 input/output/status indicators

Output Time

 N/A 0.01 to 99.99 seconds momentary, or latch

Additional Information

N/A The backlit LCD display provides simultaneous count and preset indication. The use of annunciators and simple key sequences makes operator changes quick and easy. A variety of count sources are accommodated, including relay and push-button contacts, photocells and proximity switches, and uni-or bidirectional incremental encoders. The solid state outputs can interface to light duty devices and PLCs, while the relay contacts offer heavy-duty load switching. Setup and installation is simplified through configuration switches, pluggable terminal strip connectors and a unique "no tools required" panel mount clamp.

The Squire family of preset counters combines state of the art circuitry and electronic assembly techniques with an ergonomic package design that results in the most cost effective, high performance counter value on the market.

Features

N/A

  • Two line display indicates Count and Preset values simultaneously
  • High visibility in high or low ambient light environments
  • Easy installation and service

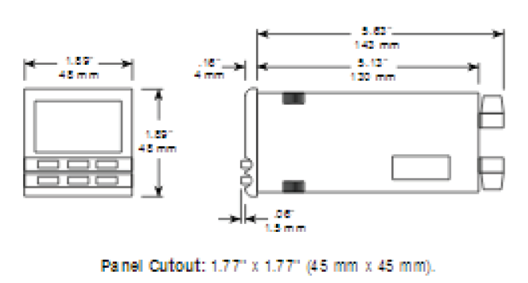

  • Compact design requires only 48 mm of panel space
  • Built-in medium duty, form C (SPDT) relays
  • Reset to zero or set to a number operation
  • Two level program and preset data security
  • Several reset options available
  • Add / subtract or bidirectional count inputs
  • Non-volatile RAM provides 10+ years data retention
  • NEMA 4/IP65 front panel
