The A103 Series Preset Counters are amazingly compact in size and low in cost, with a full complement of popular features. In addition to the preset counters, the A103 Series includes matching indicators and timers.

A supertwist LCD display with thick 12 mm (0.47") high digits allows for easy viewing at a glance and feature display-backlight capability by simply connecting an external 12VDC supply.

Powered by an internal 3 volt battery, the A103’s unique design has two battery slots; this allows battery changeover without loss of memory. Numerous types of inputs can be accepted giving you a totally self-contained system not requiring external power.
Unit of Measure

Technical Specs

Brands

 N/A
Veeder-Root

Model

 N/A A103-007

Type

 N/A Preset Counter

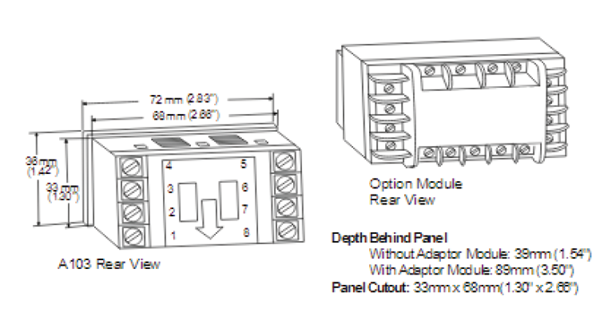

Mounting

 N/A Panel Mount with supplied mounting bracket and gasket

Operating Temperature

 N/A 32 to 131 ºF0 to 55 ºC

Display

 N/A 12 mm high, Supertwist LCD; 8 digits; "Low Bat" indicator

High Speed Count Input

 N/A PNP or square wave pulse; 10 kHz max (50% duty cycle) 45 µ sec min pulse width; Low State: < 1.0 VD High State: > 2.0 VDC (28VDC max)

Security Input

 N/A Allows access to panel reset and programming features

Remote Reset Input

 N/A NPN or Contact Closure to Common; Edge Sensitive

Additional Information

N/A The A103 Series Preset Counters are further enhanced by a series of quick attach option modules. These can provide a power supply for sensors and display backlighting, provision for high or low voltage AC or DC count signals and mechanical relay output.

Features

N/A

  • Matching totalizers, time and rate indicators and controllers available – look great together on a panel
  • SSR relay input - selectable normally open or normally closed operation
  • High visibility 8-digit LCD display with backlighting capability standard
  • Long life 3 Volt lithium battery eliminates the need for external power
  • Accepts input signals from a variety of sources
  • Resettable remotely or from the front panel
  • Option modules provide additional functionality and added convenience – fast, easy installation
  • NEMA 4X/IP65 rated front panel for use in washdown environment
