Harsh-Duty Optical Hub Shaft Encoder

NorthStar™'s HSD25 Harsh-Duty Optical Hub Shaft Encoder accepts up to 0.75" diameter shafts and operates reliably from -40 to +100ºC. The hard anodized finish encoder exceeds IP66/IP67 and NEMA 6 enclosure requirements.

This robust encoder is also available in Stainless Steel to meet NEMA 4x and 6P requirements and its sealed housing allows the Encoder to be operated when regulatory washdown and high pressure steam or caustic chemicals are required. Utilization of an advanced Opto ASIC with innovative packaging techniques enables the encoder to operate in high shock and vibration environments.

The HSD25 is also available in an Intrinsically Safe version certified to ATEX EEx ia IIB T4 when used with the appropriate is barrier.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A HSD25

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 0001 0024 0035 0040 0050 0060 0100 0120 0192 0200 0240 0250 0256 0300 0360 0500 0512 0600 0625 0720 1000 1024 1200 1250 1440 2000 2048 2500 2540 3000 3600

Certification

 N/A

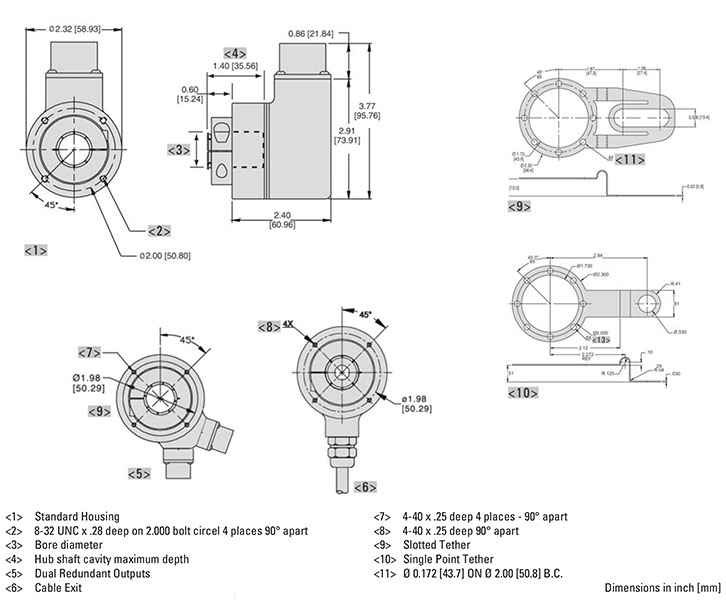

Mechanical

Housing Diameter

 N/A 58.93 mm

Shaft Diameter (Hub Shaft)

 N/A 10 mm12.7 mm3/8 in5/8 in3/4 in

Flange (Mounting of Housing)

 N/A Tether

Mounting of Shaft

 N/A Front Clamping Ring

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP66) Ingress Protection (IP67) National Electrical Manufacturers Association (NEMA 4X) National Electrical Manufacturers Association (NEMA 6)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP66) Ingress Protection (IP67) National Electrical Manufacturers Association (NEMA 4X) National Electrical Manufacturers Association (NEMA 6)

Typical Starting Torque

 N/A < 1.76 N·cm

Housing Material

 N/A Hard Anodized Aluminum Nickel Stainless Steel

Applications

N/A The HSD25 Harsh-Duty Optical Encoder features simple installation on motor or machine hub shafts. It is often mounted on the back of motors where encoder feedback is needed in harsh environment applications. Available housing options make it ideal use in corrosive environments that demand heavy washdown protection. ATEX certification is also available for intrinsically safe applications.

  • Converting Machinery
  • Material Handling
  • Packaging Equipment
  • Oil Field Exploration
  • Processing Equipment
Industries

Chemical, Food & Beverage, Oil & Gas, Paper, Steel and any other where a precise encoder is needed to operate in harsh environments.

Features

N/A

  • Single or Dual output
  • ATEX Certification available for Intrinsically Safe application
  • High Resolution Unbreakable Disk
  • Industrial Duty Connector
