The HD25 Harsh-Duty Optical Encoder is a compact heavy-duty encoder designed to exceed IP66/IP67 and NEMA 6 enclosure requirements. It is also available in stainless steel that exceeds NEMA 4X and NEMA 6P requirements and is ideal for stringent wash down environments, including those where high pressure steam or caustic chemicals are needed to meet regulatory requirements.
Unit of Measure

Technical Specs

Brands

 N/A
Hengstler

Model

 N/A HD25

Type

 N/A Incremental Encoder

Number of Pulses

 N/A 0001 0025 0035 0040 0050 0060 0100 0120 0192 0200 0240 0250 0256 0300 0360 0500 0512 0600 0625 0720 0900 1000 1024 1200 1250 1440 1524 1600 1800 2000 2048 2500 2540 3000 3048 3600 4096 5000

Certification

 N/A

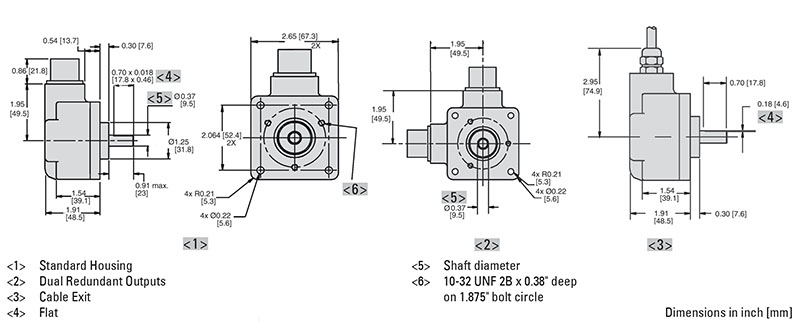

Mechanical

Housing Diameter

 N/A 67.3 mm

Shaft Diameter (Solid Shaft)

 N/A 3/8 in10 mm

Flange (Mounting of Housing)

 N/A Square Flange

Protection Class Shaft Input (EN 60529)

 N/A Ingress Protection (IP67) National Electrical Manufacturers Association (NEMA 4X)

Protection Class Housing (EN 60529)

 N/A Ingress Protection (IP67) National Electrical Manufacturers Association (NEMA 4X)

Maximum Speed

 N/A 6,000 rpm

Typical Starting Torque

 N/A < 1.76 N·cm

Housing Material

 N/A Hard Anodized Aluminum Nickel Stainless Steel

Maximum Axial Shaft Load

 N/A 440 N

Maximum Radial Shaft Load

 N/A 440 N

Applications

N/A The HD25 Harsh-Duty Optical Encoder is ideal for machine applications with corrosive environments that demand heavy washdown protection. This compact, special-duty encoder is designed to exceed IP66/IP67 and NEMA 6 enclosure requirements with a PPR range through 5000. ATEX certification is also available for intrinsically safe applications.

  • Converting Machinery
  • Material Handling
  • Packaging Equipment
  • Pickling Equipment
  • Processing Equipment
Industries

Chemical, Food & Beverage, Oil & Gas, Paper, Steel and any other where a precise encoder is needed to operate in harsh environments.

Features

N/A

  • Single or Dual output
  • Optional high current line driver
  • ATEX Certification available for Intrinsically Safe application
  • High Resolution Unbreakable Disk
  • Industrial Duty Connector
  • NEMA 4X / IP67 Rated
  • Nickel or Stainless Steel Housing available

Additional Information

N/A The HD25 features max. 440N Axial and Radial Bearings, -40º to +100º C temperature range and unique labyrinth double-sealed housing, and optional dual "redundant" outputs and is covered by a two-year warranty (one year for bearings). NorthStar™'s traditional quality, reliability and value are built-in to every HD25 encoder.

Also available in this series, is an Intrinsically Safe version certified to ATEX EEx ia IIB T4 when used with the appropriate IS Barrier. Accessory barriers can be supplied with the encoder.
